Photovoltaics

14.10.2026 00:20:16

Photovoltaics
Battery charge 87.00 %
Charging power 0.00 W
Percentage from full power 0.00 %
Actual battery capacity 316.10 Ah
Battery voltage 13.26 V
Battery current -4.80 A
String A power 0.00 W
String A panels voltage 0.85 V
String A charger current 0.00 A
String B power 0.00 W
String B panels voltage 0.62 V
String B charger current 0.00 A
Electronics box temperature 12.34 °C
Battery temperature 13.08 °C
Temperature at box 10.42 °C

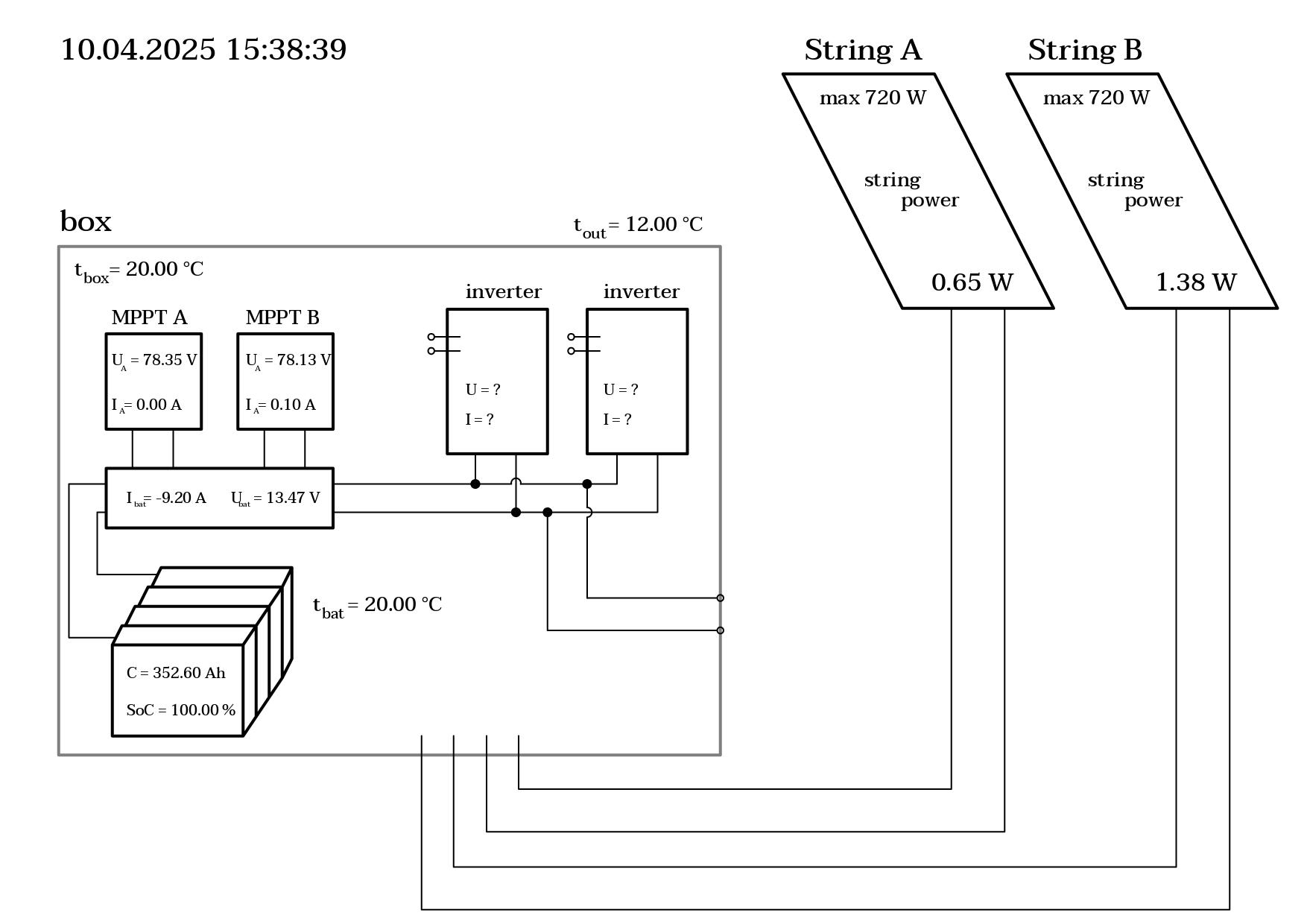

Atria is powered by an island system built on Victron Energy components. The system consists of two MPPT controllers (MPPT 100/50 and MPPT 100/30), PV is divided into two strings A and B. LiFePo cells are used for battery storage, connected to a system voltage of 12 V. As a battery management system BMS123 Smart is used, which is fully integrated into PV monitoring. The island system has two 230 V converters with a power of 500 VA at the output. System monitoring is provided by CERBO GX.
Photovoltaics

Fotovoltaika hydroponie

14.10.2026 00:20:57

Battery voltage 13.27 V
Battery current -1.20 A
Charging power -15.92 W
Battery charge 85.00 %
Chr Voltage 13.27 V
ChrPV Voltage 0.71 V
ChrPV Power 0.00 W
Chr Power 0.00 W
